2010 Pinnacle DV-2842 Double Column Vertical Machining Centre DCM VMC

2010 Pinnacle DV-2842 Double Column Vertical Machining Centre DCM VMC

Contact us for price

Location:Navi Mumbai, India

or
Call +91 9769081000 / 9769281000 / 9820155195

Description

Equipped With:

  1. New 90 Degree Angle Head
  2. Linear Scales on all 03 Axis
  3. All 03 Axis on Linear Scales
  4. Direct Drive Spindle


Show All

Specifications

ManufacturerPinnacle
ModelDV-2842 Double Column Vertical Machining Centre DCM VMC
Year2010
ConditionUsed
Stock Number6278527

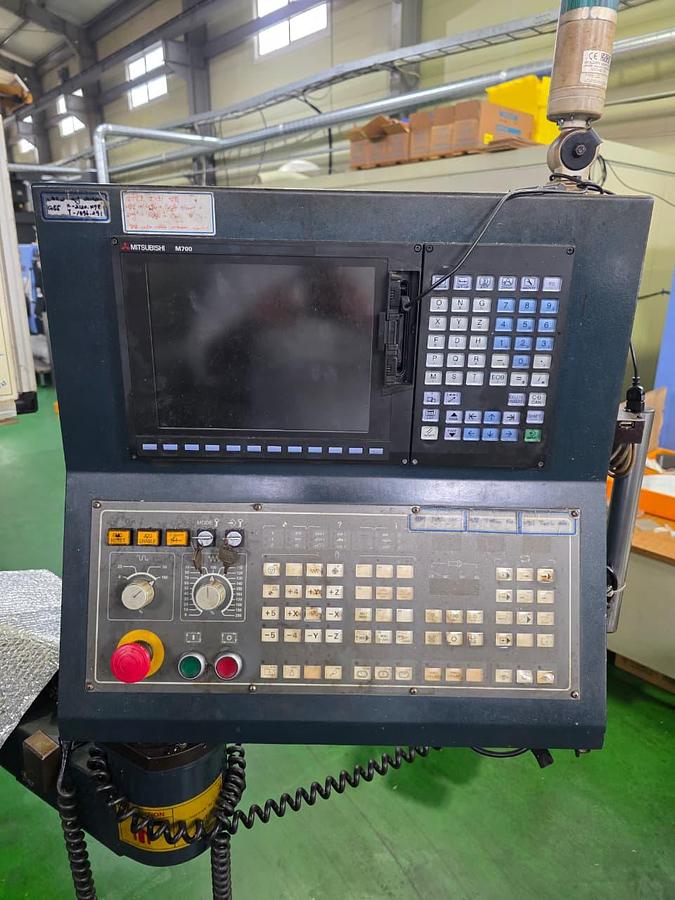

ControlMitsubishi M70
Traverses (xyz)4,200 x 2,800 x 800mm
Distance Between Columns2,400mm
Spindle taperBT50
Spindle speed10,000rpm

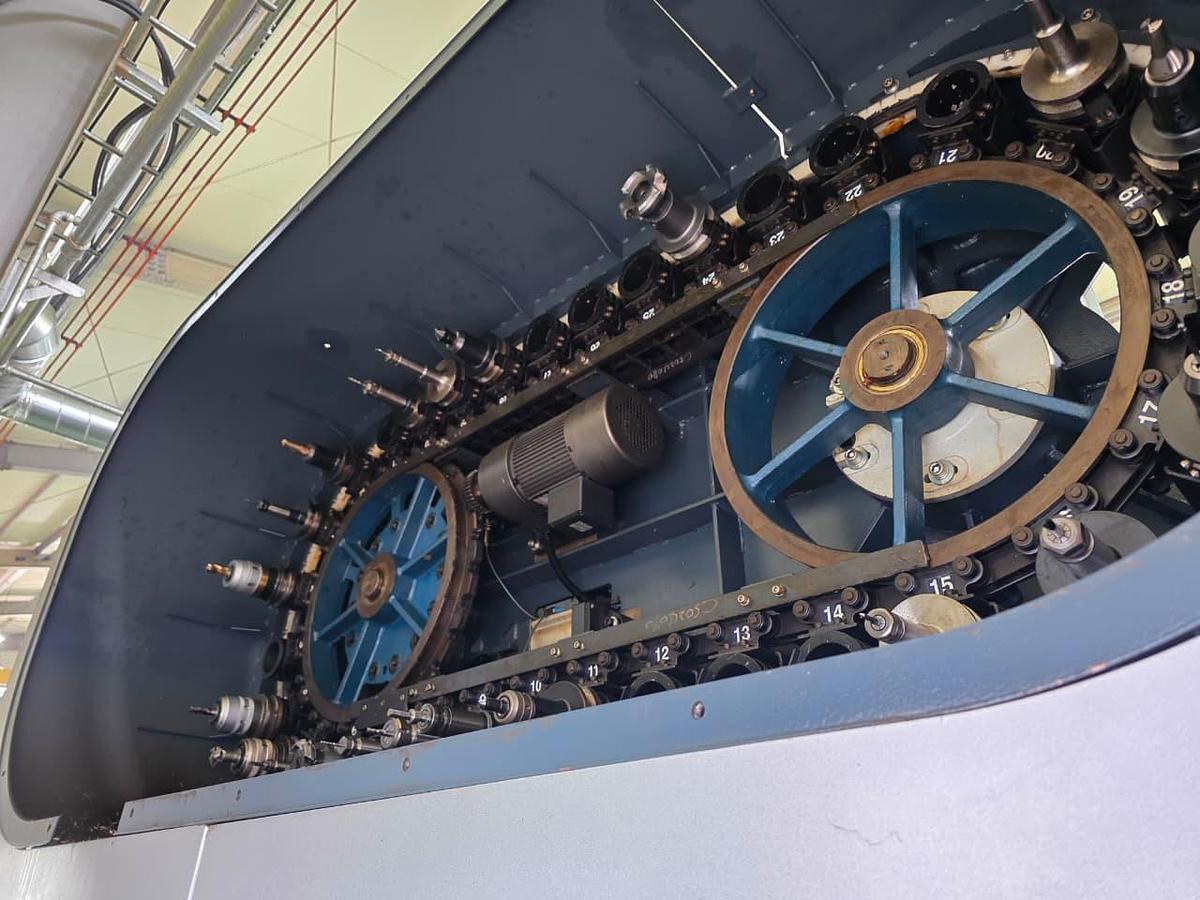

Tool change capacity32 Tools
